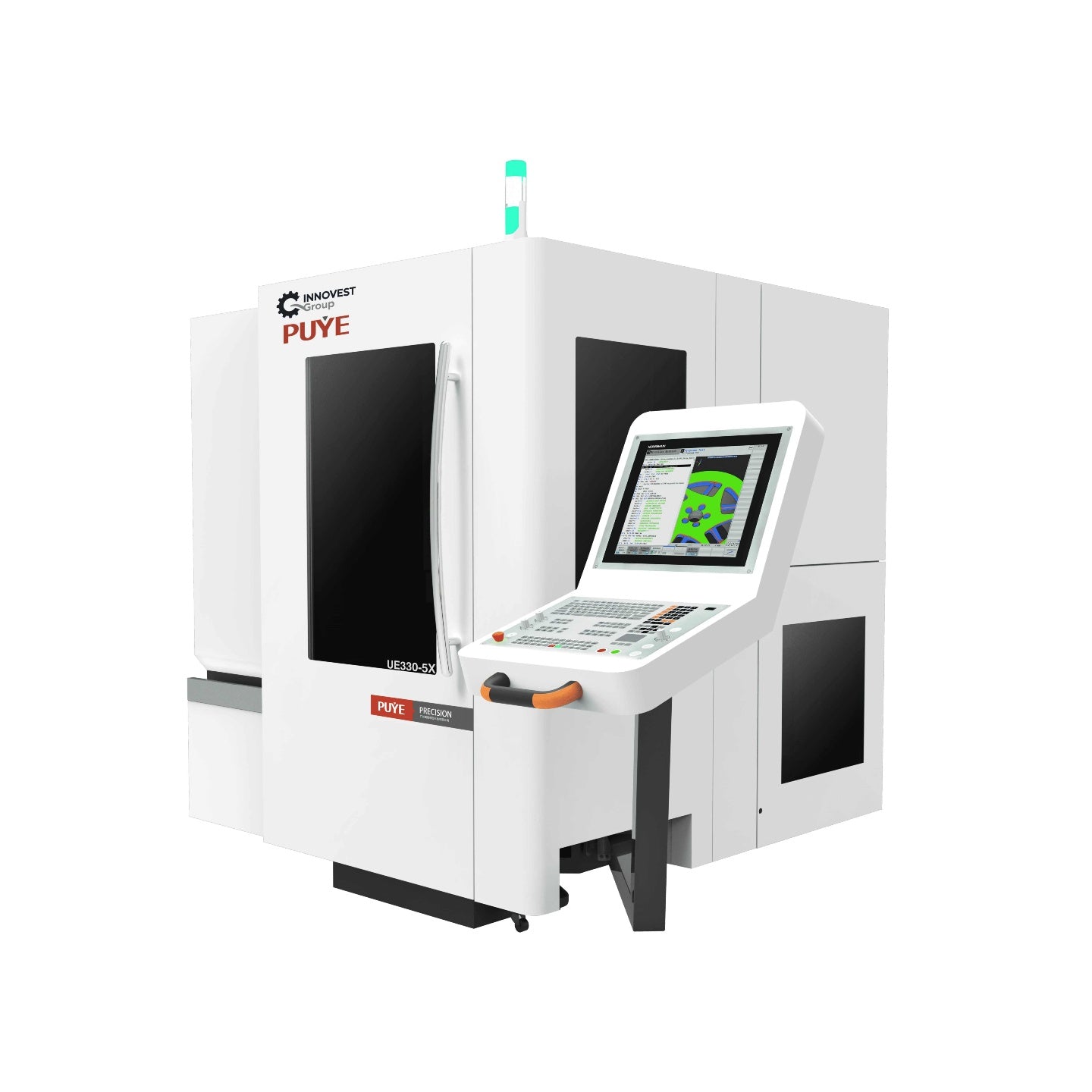

UE Series 300_5X

● Gantry-type structure with moving parts away from the processing area, ensuring dry and wet separation and effectively reducing failure rate.
● Cradle-type AC rotary table with DDR direct-drive motor control structure, free from backlash and mechanical wear, ensuring optimal accuracy over the long term.
● Spindle uses BBT40, with a spindle speed of 12000 rpm, offering high speed and high rigidity.
● X, Y, and Z axes use precision linear guides for fast displacement speed. X, Y, Z, A, and C axes are equipped with standard linear encoders for high accuracy.
●  Heidenhain, Renishaw, Syntec, and Huazhong control systems are available, enabling five-axis simultaneous machining.

Structural Features
● Gantry-type structure analyzed using finite element analysis.
● Integrated beam with a robust structure for excellent support rigidity.
● High-response pneumatic balance design for the Z-axis, resulting in low screw load, low heat generation, and long service life.
● Built-in spindle structure, with electric spindle/mechanical spindle options, offering a large processing range and high cutting efficiency.
● XYZ axes are equipped with standard linear encoders, and A/C axes are equipped with standard rotary encoders for high machining accuracy.
● Multiple CNC systems are available as options.

Contact us to receive detailed Specifications and Cycle time Analysis Reports!
