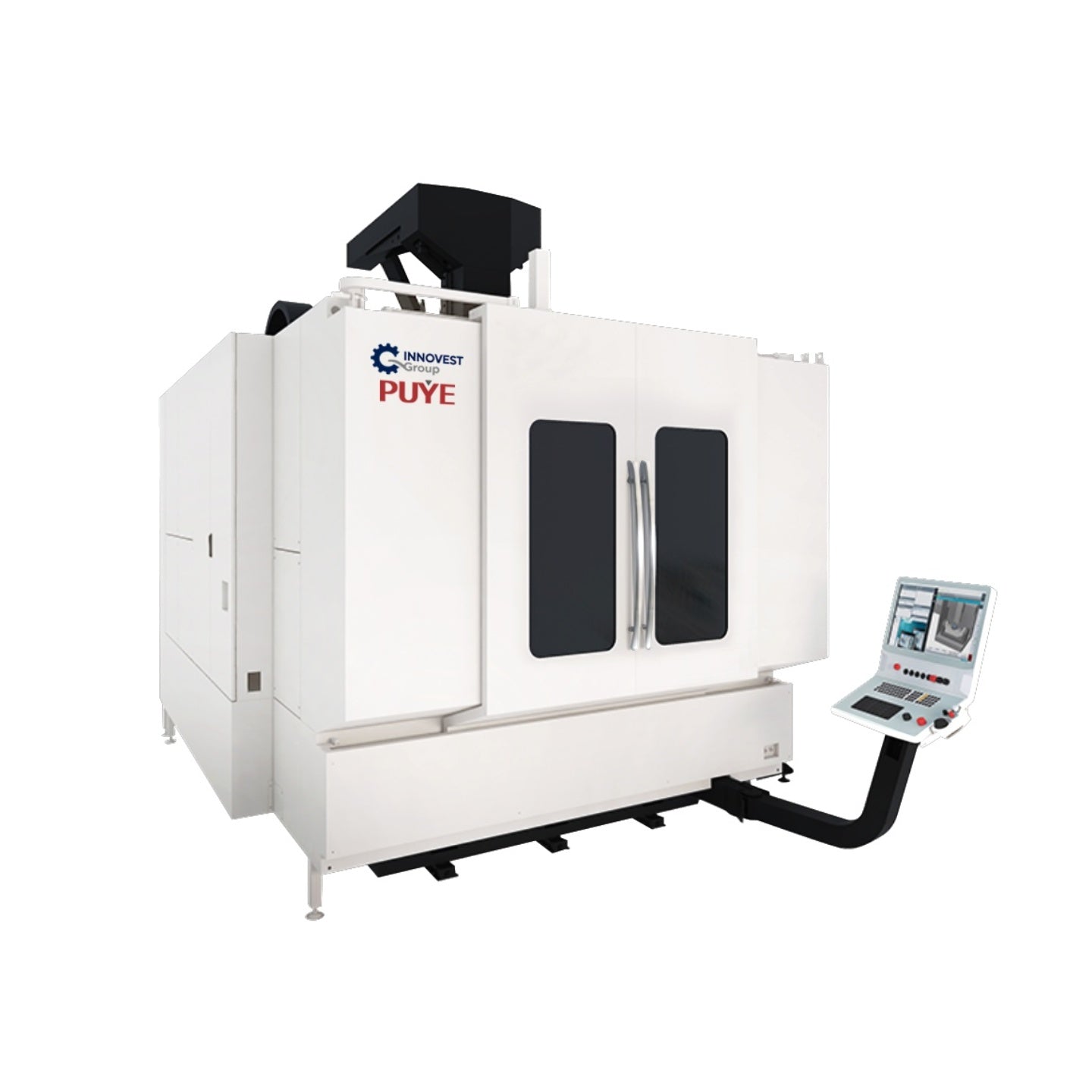

UE Series

● Gantry-type structure with moving parts away from the processing area, ensuring dry and wet separation and effectively reducing failure rate.
● Cradle-type AC rotary table with DDR direct-drive motor control structure, eliminating backlash and mechanical wear, ensuring optimal precision over the long term.
● Spindle uses HSK-A63/100, with an 18000 rpm electric spindle, offering high speed and high rigidity.
● X, Y, and Z axes use precision linear guides for fast displacement speed. X, Y, Z, A, and C axes are equipped with standard linear encoders for high accuracy.
● Compatible with various control systems such as Heidenhain, Renishaw, Syntec, and Huazhong, enabling five-axis simultaneous machining.

Structural Features
● Gantry-type structure analyzed using finite element analysis.
● Integrated crossbeam with dense rib structure for excellent support rigidity.
● High-response pneumatic balance design for the Z-axis, resulting in low screw load, low heat generation, and long service life.
● Built-in spindle structure, with optional electric or mechanical spindle, offering a large processing range and high cutting efficiency.
● XYZ axes are equipped with standard linear encoders, and A/C axes are equipped with standard rotary encoders for high machining accuracy.
● Multiple CNC systems are available as options.

Contact us to receive detailed Specifications and Cycle time Analysis Reports!
