TZL-CNC-3000B

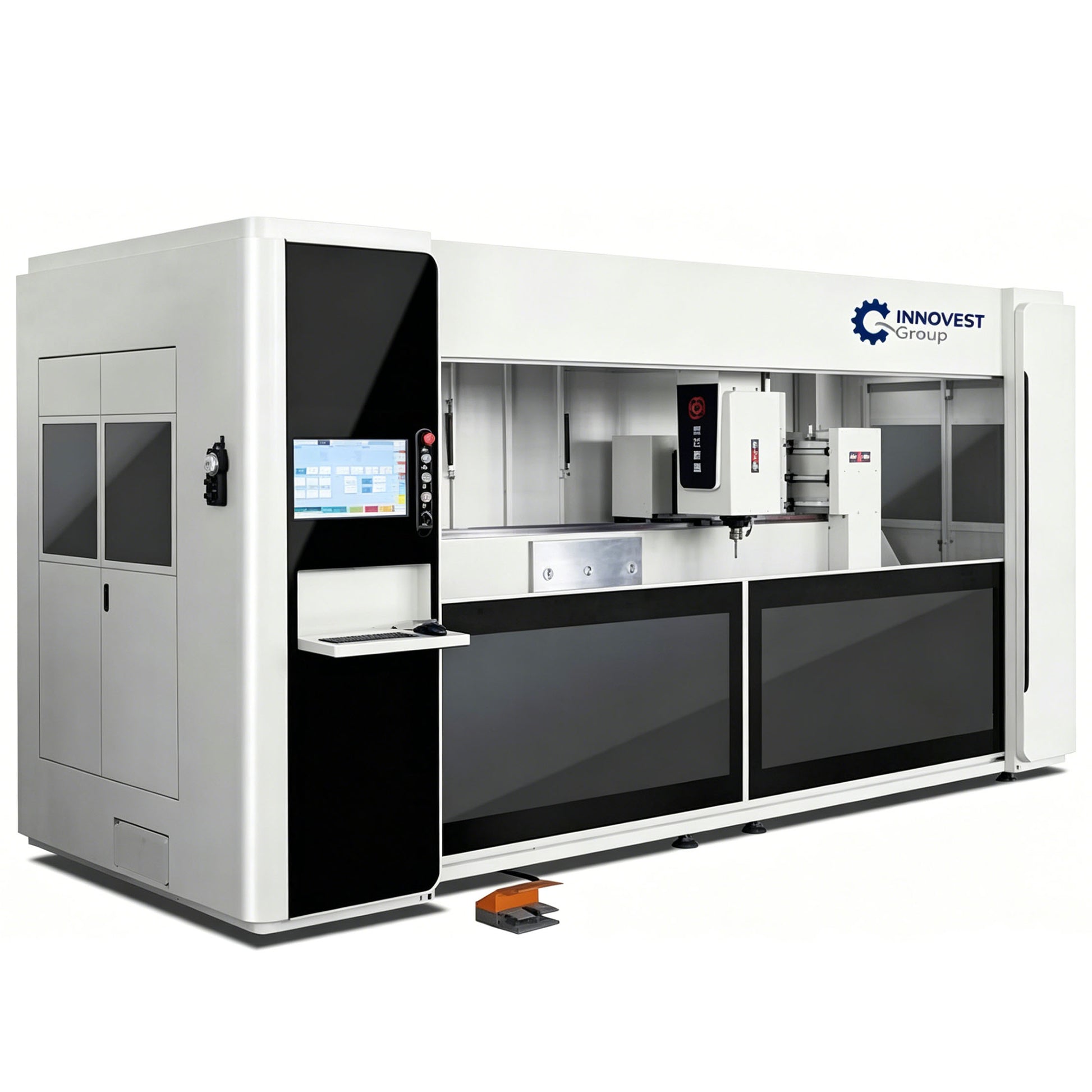

TZL-CNC-3000B | Gantry 3-Axis CNC Machining Center (Enclosed)

A fully enclosed gantry-style machining center for precision hole, wedge-slot, and water-port machining on aluminum door/window and curtain wall profiles. Fully automated processing requires no manual intervention once set up, and a 3-station tool magazine handles varied hole diameters.

Key Features

· Intelligent CNC system with intuitive HMI — fully automated processing, no manual intervention

· 3-station automatic tool-change magazine for varied-diameter hole machining

· Fully enclosed structure — clean, safe, environmentally friendly

· Rotating table (-90°/0°/+90°) for 3-face milling in a single clamping

· Gantry structure design — high bed strength, excellent rigidity and stability

· Linear motion bearings across X/Y/Z for low resistance, high precision

· X-axis helical rack-and-pinion; Y/Z-axis ball screw drive

· Machine head in cast iron + high-strength aluminum alloy for compact strength

· Imported high-speed electric spindle — stable, low noise, strong cutting power
