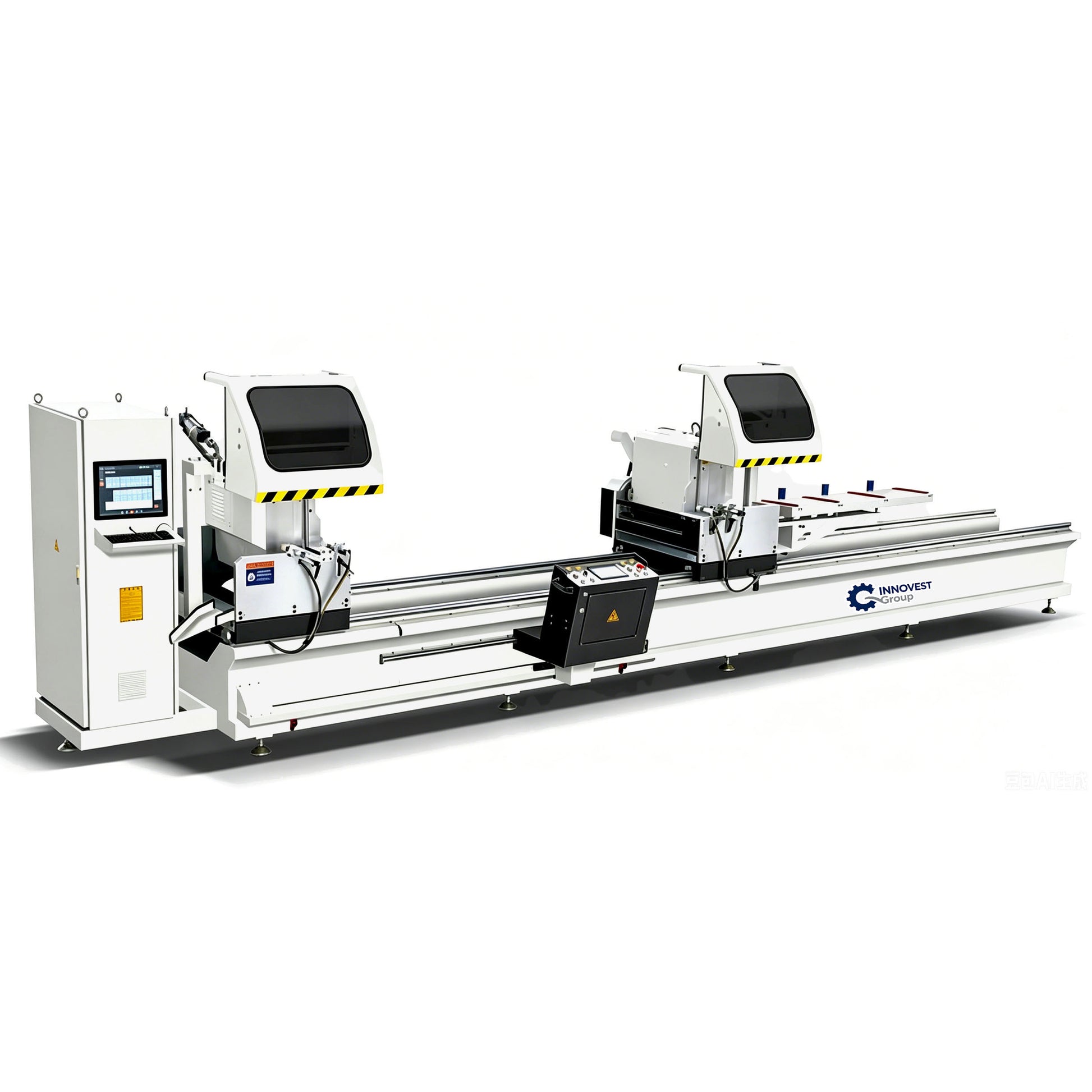

STJ-SKR-600 | CNC Variable-Angle Double-Head Cutting Saw
Built on a European machine platform, the STJ-SKR-600 handles any angle from 45° to 157.5° — ideal for industrial aluminum profiles, thermal-break doors/windows, and curtain wall systems. Advanced CNC control supports cut-optimization for material yield. Optional 500mm/550mm blade configurations.
Key Features
· Any-angle cutting: 45°–157.5°, CNC-controlled with cut-optimization function
· European-style build, clean industrial appearance
· Direct-drive imported motor + pneumatic-hydraulic damping cylinder feed
· Imported servo motor with reducer; high-precision imported blade
· Batch input of multiple cutting lengths for continuous, mixed-length cutting
· No return-to-reference needed when changing cut length
· Sealed blade chamber for effective chip removal
· Dual pneumatic clamping per head for safe, secure cutting
· Configurable with 500mm or 550mm blades
