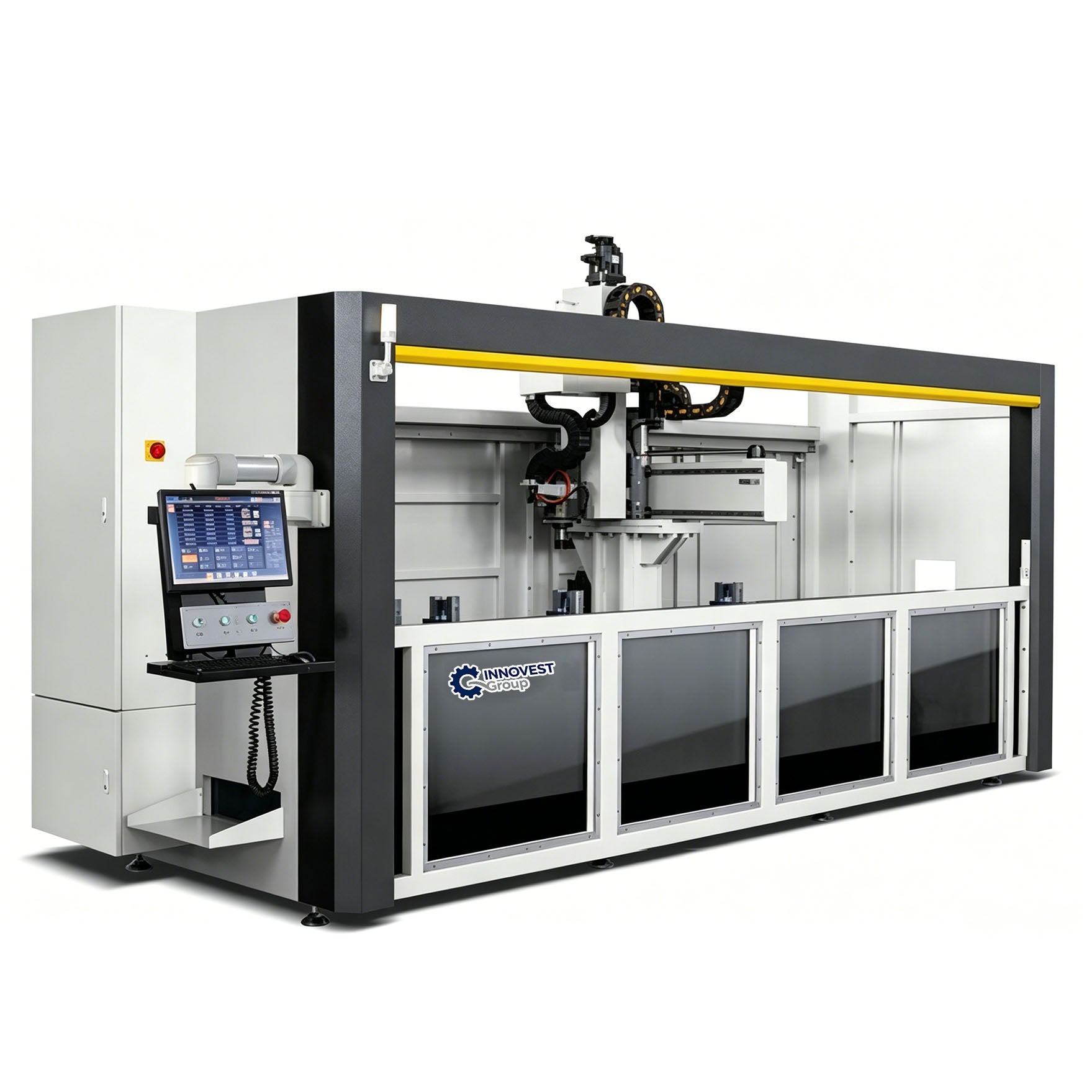

FZ-CNC-3000

FZ- CNC-3000 | 4-Axis CNC Machining Center for Aluminum Profile

Engineered for precision hole, wedge-slot, and water-port machining on industrial, door/window, and curtain wall aluminum profiles. Three continuous CNC axes (X/Y/Z) combine with a spindle that rotates between -90°/0°/+90°, completing all hole-machining on three faces in a single clamping.

Key Features

· CNC operating system, high-speed electric spindle, in-line tool magazine, servo auto-swing fixture

· Auto tool-change magazine for compound machining of different hole diameters

· Auto-clamping-avoidance fixture for higher efficiency

· 3-face milling in one clamping via -90°/0°/+90° spindle rotation

· High-rigidity machine bed, stable and reliable performance, easy operation

· All motion via servo motor + pneumatic system; linear motion bearings for low resistance, high precision

· Machine head built from cast iron + high-strength aluminum alloy — compact, high strength

· X-axis helical rack-and-pinion drive; Y/Z-axis ball screw drive for machining accuracy

· Imported high-speed electric spindle — stable rotation, low noise, strong cutting power

· Intuitive CNC interface for fast, convenient operation
